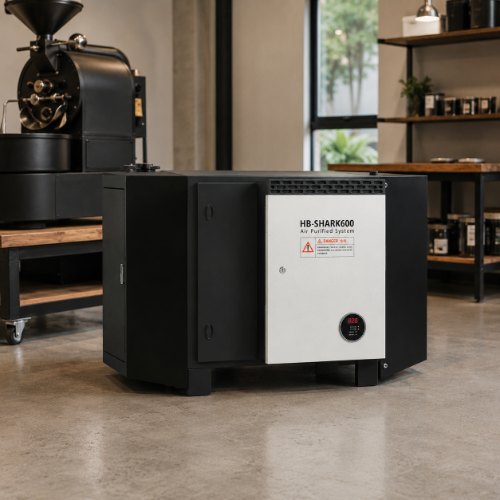

HB-SHARK600 Fume Filter
- Model: HB-SHARK600
- Product Type: Coffee Roaster Fume Filter
- Compatible Roasting Capacity: 0–8 kg
- Purification Method: Cylindrical Honeycomb Electric Field
- Inlet Filtration: Chaff Prefiltration
- Air Handling Capacity: 4000 m³/h
- Purification Efficiency: More Than 98%
- Cooling Fan Discharge: 1150 m³/h
- Operating Modes: Switchable Roasting / Cooling Mode
- Platform Load-Bearing Capacity: 100 kg
- Outlet Filtration: Activated-Charcoal Deodorization
The HB-SHARK600 is a commercial fume-filtration and air-purification system designed for coffee roasters with a roasting capacity of 0–8 kg. It helps capture chaff, smoke, oil mist, and roasting odors before the exhaust air is released into the working environment.
The system uses a cylindrical honeycomb electric field as its main purification stage. An inlet filter provides chaff prefiltration to reduce larger particles entering the purification chamber, while the outlet filter uses activated charcoal to help reduce residual odors.
With an air-handling capacity of 4000 m³/h and a stated purification efficiency above 98%, the HB-SHARK600 is suitable for commercial coffee shops, roasting studios, and medium-capacity coffee roasting facilities that require improved smoke and odor management.
The auxiliary fan supports switchable roasting and cooling modes, while the cooling fan provides an airflow discharge of 1150 m³/h. Multiple inlet tube diameters are available to support connection with different coffee-roasting systems.
The machine has a black industrial enclosure, a 100 kg platform load-bearing capacity, and a robust floor-standing structure. Its 180 kg net weight and commercial-grade construction make it suitable for continuous use in professional coffee-roasting environments.
Technical Specifications
| Specification | HB-SHARK600 |
|---|---|
| Product Type | Coffee Roaster Fume Filter |
| Compatible Roasting Capacity | 0–8 kg |
| Purification Mode | Cylindrical Honeycomb Electric Field |
| Inlet Air Filter | Chaff Prefiltration |
| Outlet Air Filter | Activated-Charcoal Deodorization |
| Auxiliary Fan Mode | Roasting / Cooling, Switchable |
| Air Handling Capacity | 4000 m³/h |
| Cooling Fan Discharge | 1150 m³/h |
| Purification Efficiency | More Than 98% |
| Roasting Mode Power | 1400 W |
| Rated Voltage | 220 V |
| Rated Frequency | 50 Hz |
| Inlet Tube Diameter | 80 mm / 100 mm / 150 mm |
| Platform Load-Bearing | 100 kg |
| Machine Color | Black |
| Net Weight | 180 kg |
| Gross Weight | 230 kg |
| Machine Size | 1464 × 870 × 952 mm |
| Package Size | 1600 × 1020 × 1000 mm |
