HB-L6S [G&E] / HB-L8S Coffee Roaster
- Model: HB-L6S [G&E] / HB-L8S
- Batch Size: 3–6 kg for HB-L6S; 3–8 kg for HB-L8S
- Roasting Capacity: Up to 24 kg/h for HB-L6S; up to 32 kg/h for HB-L8S
- Roasting Time: 6–15 minutes
- Heating Options: Gas / Electric
- Gas Source: LPG / Natural Gas
- Drum Type: Double-Wall Cast-Steel Drum
- Adjustable Drum Speed: 10–62 rpm
- Hot-Air Fan Discharge: 7.2 m³/min
- Cooling System: Stirring Cooling with 30 m³/min Fan Discharge
- Smart Control: APP Supported with USB / HDMI Data Output

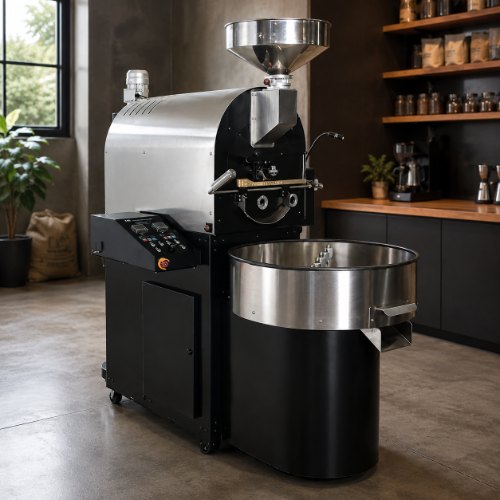

The HB-L6S and HB-L8S are convection coffee roasters designed for medium-volume commercial roasting. The HB-L6S supports a batch size of 3–6 kg and a roasting capacity of up to 24 kg/h, while the HB-L8S handles 3–8 kg per batch with a roasting capacity of up to 32 kg/h. Both models complete a typical roasting cycle in approximately 6–15 minutes.
The machines feature a double-wall cast-steel drum with a double-layer multi-piece paddle structure. An adjustable drum speed of 10–62 rpm supports controlled bean movement for different batch sizes and roast profiles. Electronically adjustable air pressure, a hot-air fan discharge of 7.2 m³/min, and a 150 mm hot-air duct provide flexible airflow control throughout the roasting process.
An integrated stirring cooling system delivers a cooling airflow of 30 m³/min for rapid post-roast cooling. The series also includes a four-way temperature display, air-pressure and gas-pressure monitoring, separate hot-air and cooling ducts, APP-supported control, and USB/HDMI data output.
Technical Specifications
| Specification | HB-L6S | HB-L8S |
|---|---|---|
| Heating Type | Convection Heating | Convection Heating |
| Batch Size | 3–6 kg | 3–8 kg |
| Roasting Capacity | Up to 24 kg/h | Up to 32 kg/h |
| Roasting Time | 6–15 minutes | 6–15 minutes |
| Gas Source | LPG / Natural Gas | LPG / Natural Gas |
| Gas Rated Voltage | 220 V | 220 V |
| Gas Rated Power | 900 W | 900 W |
| Combustion Chamber | Venturi-Premixed Fire Row | Venturi-Premixed Fire Row |
| LPG Consumption | 0.24–0.72 m³/h | 0.28–0.86 m³/h |
| Natural Gas Consumption | 0.48–1.44 m³/h | 0.57–1.70 m³/h |
| Gas Supply Pressure | 4 kPa | 4 kPa |
| Electric Voltage | 380 V, Three-Phase | Not specified |
| Electric Rated Power | 15,300 W | Not specified |
| Electric Rated Current | 25 A | Not specified |
| Electric Heater | Multiple-Unit Heating Wire | Not specified |
| Drum Type | Double-Wall Cast-Steel Drum | Double-Wall Cast-Steel Drum |
| Drum Paddle | Double-Layer Multi-Piece Paddle | Double-Layer Multi-Piece Paddle |
| Drum Speed | 10–62 rpm, Adjustable | 10–62 rpm, Adjustable |
| Airflow Control | Electronic Air-Pressure Adjustment | Electronic Air-Pressure Adjustment |
| Hot-Air Fan Discharge | 7.2 m³/min | 7.2 m³/min |
| Hot-Air Duct Diameter | 150 mm | 150 mm |
| Cooling Type | Stirring Cooling | Stirring Cooling |
| Cooling Fan Discharge | 30 m³/min | 30 m³/min |
| Cooling Duct Diameter | 150 mm | 150 mm |
| Exhaust System | Separate Hot-Air and Cooling Ducts | Separate Hot-Air and Cooling Ducts |
| Temperature Display | Four-Way Temperature Display | Four-Way Temperature Display |
| Pressure Monitoring | Air Pressure / Gas Pressure | Air Pressure / Gas Pressure |
| Control System | APP Supported | APP Supported |
| Data Output | USB / HDMI | USB / HDMI |
| Machine Color | Black | Black |
| Net Weight | 248 kg | 248 kg* |
| Gross Weight | 430 kg | 430 kg* |
| Machine Size | 1700 × 840 × 1760 mm | 1700 × 840 × 1760 mm* |
| Chaff Bucket Size | 480 × 385 × 1850 mm | 480 × 385 × 1850 mm* |
| Package Size | 1785 × 935 × 1750 mm | 1785 × 935 × 1750 mm* |
