HB-CS100 Color Sorter Machine
- Model: HB-CS100
- Product Type: Color Sorter Machine
- Output: 150–250 kg
- Take-Out Ratio: ≥12:1
- Color Separation Precision: ≥99.99%
- Machine Dimensions: 712 × 314 × 847 mm
- Net Weight: 70 kg
- Rated Power: 300 W
- Power Supply: 110/220 V, 50/60 Hz
- Air Supply Pressure: 0.5–0.8 MPa
- Machine Color: White
The HB-CS100 is designed for coffee processors that require a compact and clearly specified color-sorting solution. Its separation system combines an output of 150–250 kg with color separation precision of ≥99.99%, helping operators improve consistency during material inspection and sorting.

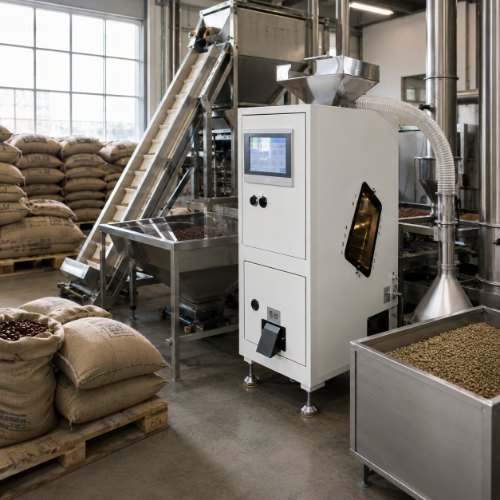

The machine features a narrow vertical enclosure with a stainless-steel feeding hopper, touchscreen control panel, inspection window, and separate discharge structure. Its white industrial housing provides a clean appearance suitable for professional coffee-processing environments.
With dimensions of 712 × 314 × 847 mm and a net weight of 70 kg, the HB-CS100 can be positioned in production areas where installation space is limited. The machine supports 110 V and 220 V power supplies at 50/60 Hz and operates with a rated power of 300 W.For normal operation, an air supply pressure of 0.5–0.8 MPa is required. Before installation, users should confirm the available compressed-air system, electrical standard, material characteristics, and expected sorting requirements.
Technical Specifications
| Specification | HB-CS100 |
| Product Type | Color Sorter Machine |
| Rated Output | 150–250 kg |
| Take-Out Ratio | ≥12:1 |
| Color Separation Precision | ≥99.99% |
| Machine Color | White |
| Dimensions | 712 × 314 × 847 mm |
| Dimension Order | L × W × H |
| Weight | 70 kg |
| Power Supply | 110/220 V |
| Frequency | 50/60 Hz |
| Total Power | 300 W |
| Air Supply Pressure | 0.5–0.8 MPa |
